EV 0.15 – 0.3mm
Lamination Stamping Solution
- Three Points Precision Press HV350-3000
- Push & Pull Servo Feeding System (SIEMENS)
- Recommendation of EV Tooling Manufacturer
Overview
Overview

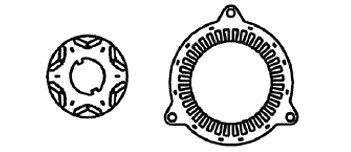

- EV motor core
- 350T press w/3000mm bolster
- Strip thickness 0.27mm
- Strip width 330mm
- 2 cavities; pilot pitch 178.5mm
Stamping Quality
- Avoid mis-feed and strip drift
(strip draw up stator groove teeth) - Ensure stator roundness
(strip creases in tool area) - Reach to 200spm
(one feeder only reach 150spm)

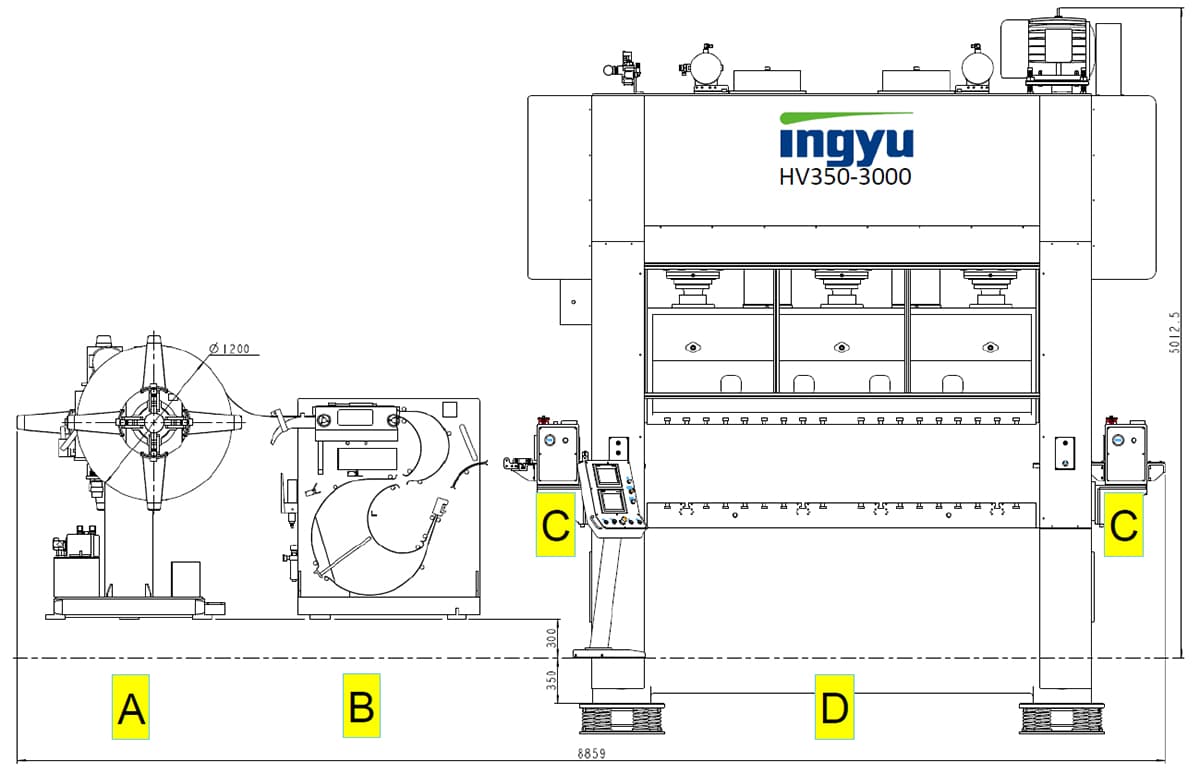

Line Layout
A. Dual-Head Uncoiler (motorized) DCT500
B. New Loop Leveler (synchronized) FRS500
C. Push & Pull Dual-Mode Servo Feeders FNR500
D. Three Points Precision Press HV350-3000
- Max. mat. width 500mm
- EV mat. thickness 0.15-0.3mm
- Compact line layout 8.8m
- Total height 5m (foundation)

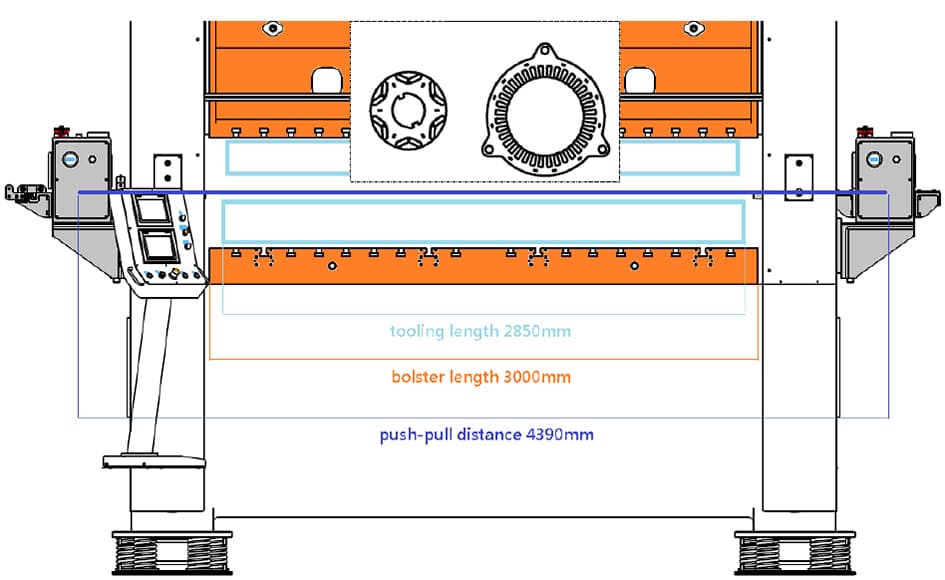

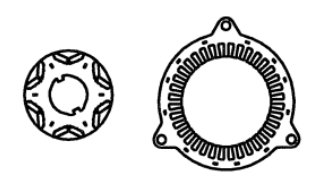

Double Row Tooling Layout

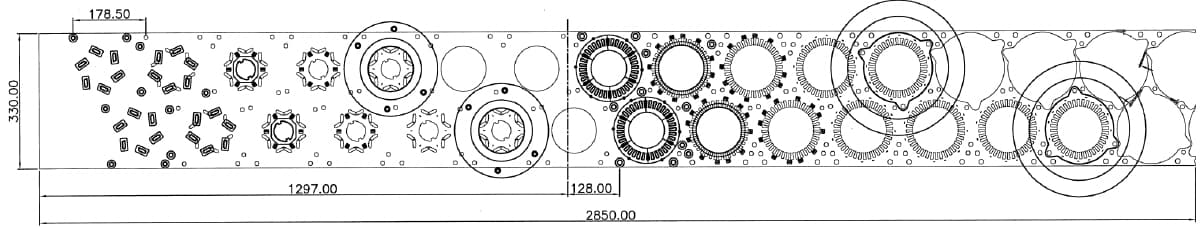

Width: 330.0mm
Pitch: 178.5mm
Material: 0.3mm (30HX1500)
Tool Size: 2850*900
Shear Tonnage: 125 tons
Loss: 42.2%

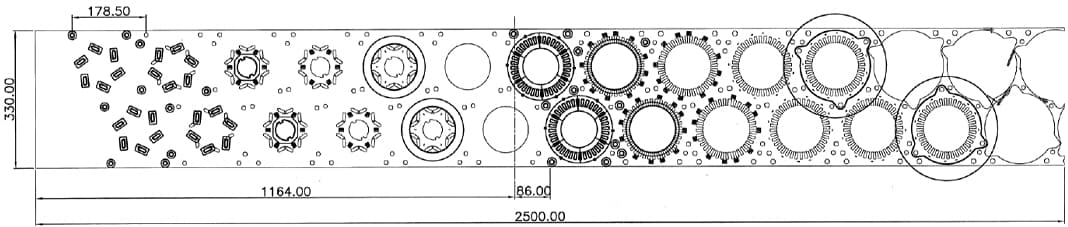

Width: 330.0mm
Pitch: 178.5mm
Material: 0.3mm (30HX1500)
Tool Size: 2500*850
Shear Tonnage: 125 tons
Loss: 42.2%

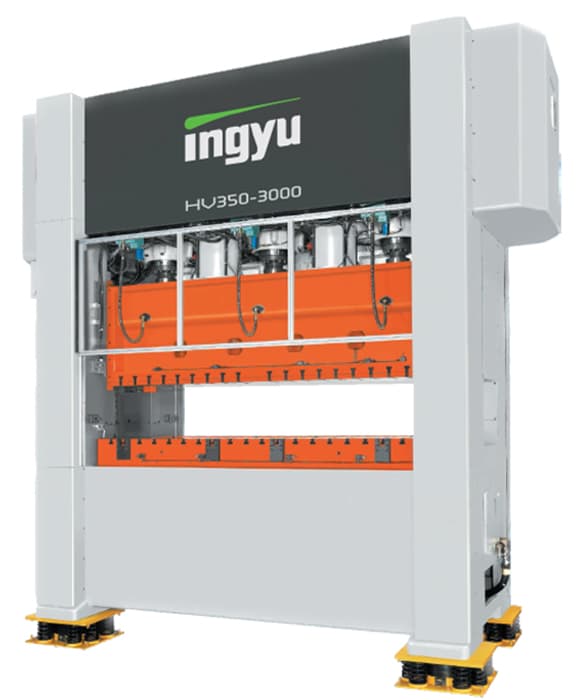

Three Points Precision Press
| HV350-3000 | |
|---|---|
| Press Capacity | 350 ton |
| Plunger Q'ty | 3 points |
| Stroke Length | 30 mm |
| Press Speed | 150 – 300 spm |
| Shut Height | 540 – 600 mm |
| Bolster Area | 3000 x 1200 mm |
| Slide Area | 3000 x 800 mm |
| Slide Quick Lift | 70 mm (Option) |
| Main Motor | 75 hp |
| Max. Upper Die Weight | 3000 kg (dual counter weight) |
Dual Counterbalance System
This press is designed with a dual counterbalance system, capable of supporting extra-long upper dies weighing up to 3,000 kg. It effectively balances vibration during operation, enabling stable high-speed production of up to 300 SPM.
Three-Point Plungers & Gib Guiding System

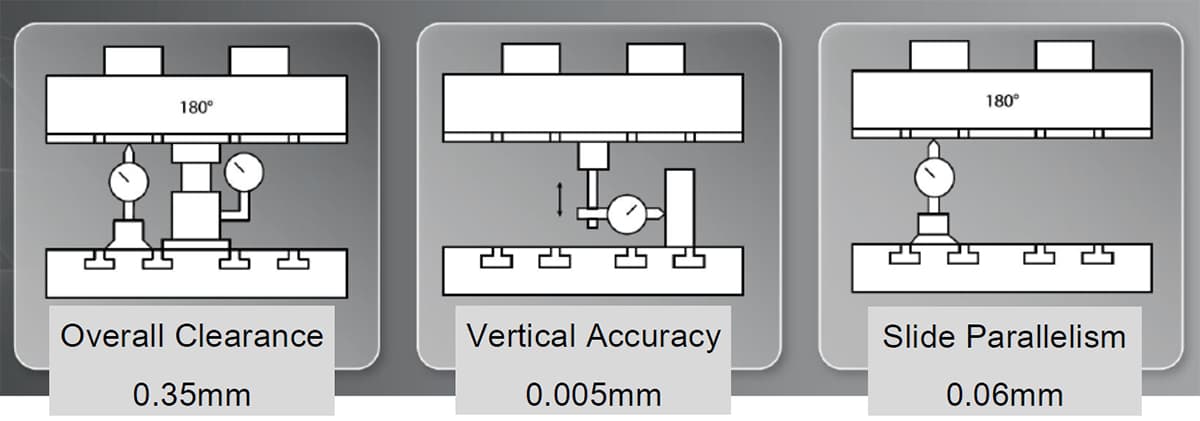

Three-point plungers with hydraulic layer evenly distributes force and support, effectively reducing slide deflection and keep parallelism within 0.06mm.
Square guide gibing design with high-rigidity linear bearings resists eccentric loads during stamping and ensures precise verticality 0.005mm.

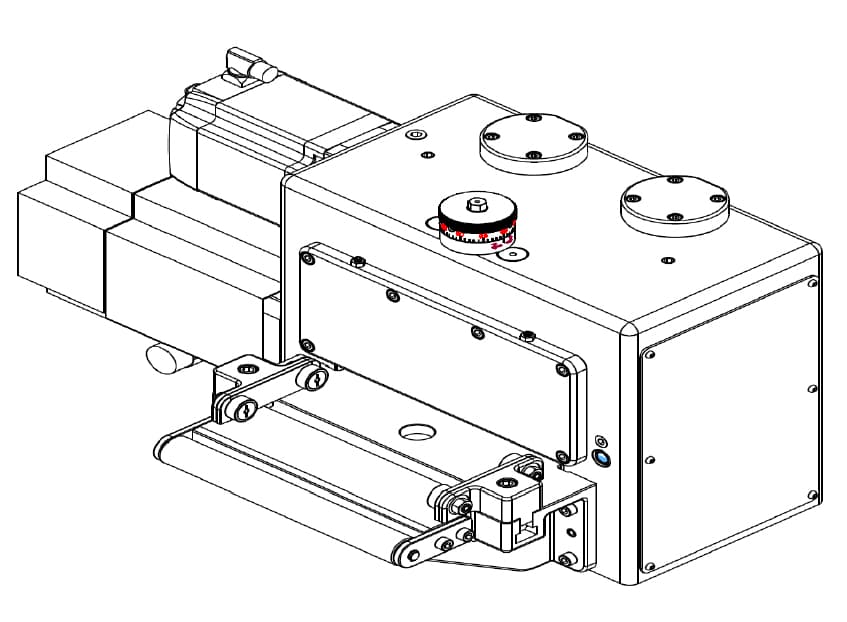

Push & Pull Dual-Mode Servo Feed
| NC Roll Feeder | FNR-500 |
|---|---|
| Material Width (mm) | * 500 (push-type) * 465 (pull-type) |
| Material Thickness (mm) | 0.15 – 0.5 |
| Pitch Range (mm) | 0-999 |
| Max. Output (m/min) | 60 |
| Release Angle (degree) | servo release (programmable) |
| Feeding Direction | switchable according to its position on the press |

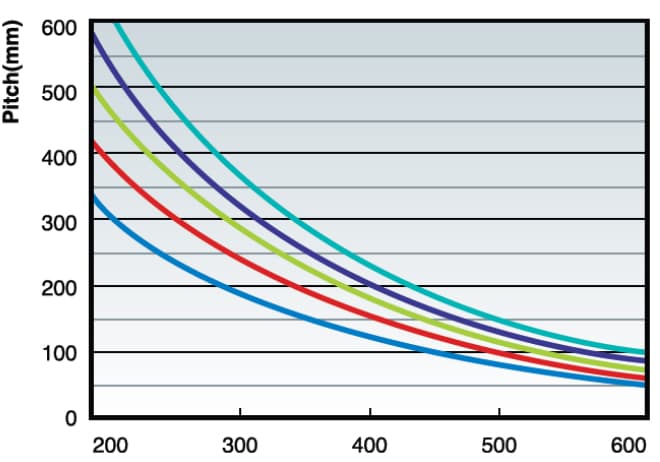

Speed vs Feeding Length |
 |
- Push mat. max. width 500mm;
Pull mat. max. width 465mm. - Clamp force adjustable;

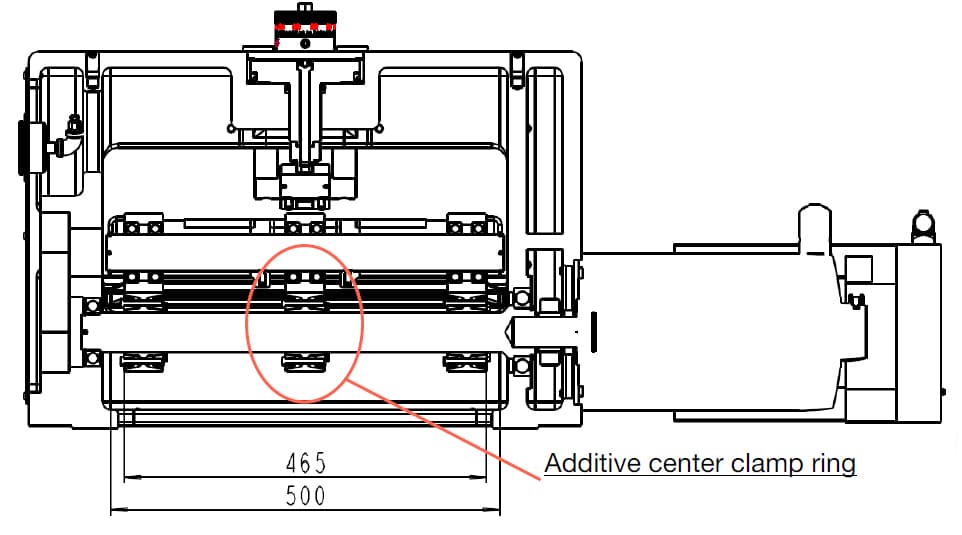

Pull the setup half of the push clamp force. - Two clamp ring positions are adjustable for strip edge and additive center clamp ring for a central Z excess of two cavities/row.

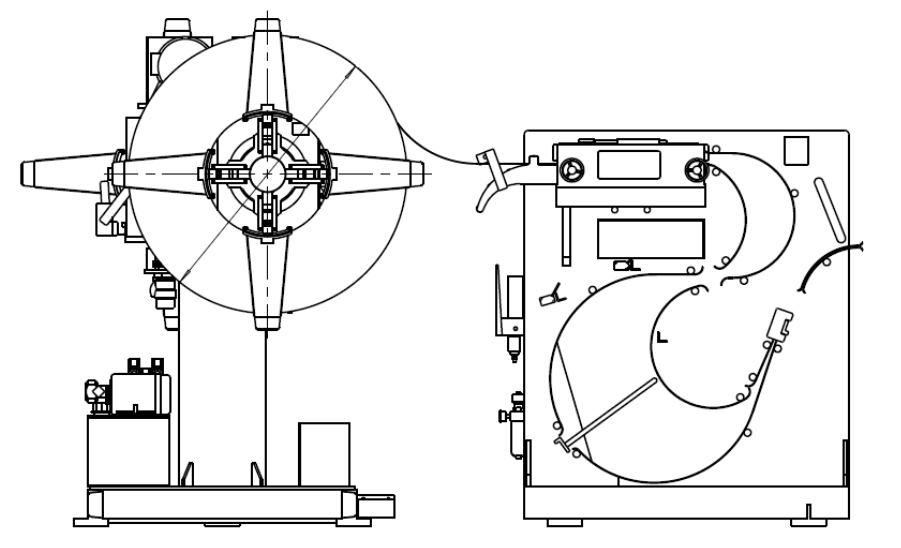

New Loop Leveler and Dual-Head Uncoiler
- New loop design for 0.2mm thin and 0.5mm regular strip
- Synchronization between the leveler and motorized uncoiler for compact line layout
| New Loop Leveler | FRS-500 |
|---|---|
| Max. Material Width (mm) | 500 |
| Material Thickness (mm) | 0.15 – 0.5 |
| Drive Motor (mm) | 5 hp |
| Max. Output (m/min) | 60 |
| Dual-Head Uncoiler | DCT-500 |
|---|---|
| Max. Material Width (mm) | 500 |
| Material Thickness (mm) | 0.15 – 0.5 |
| Max. Coil Diameter (mm) | 1500 (enhanced) |
| Max. Load (kg/head) | 5000 (enhanced) |
| Motor drive |

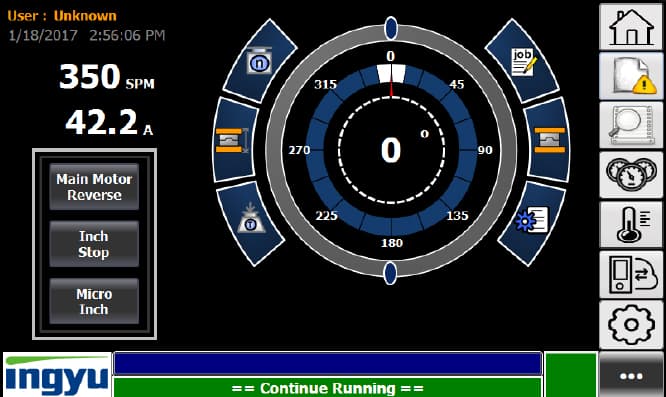

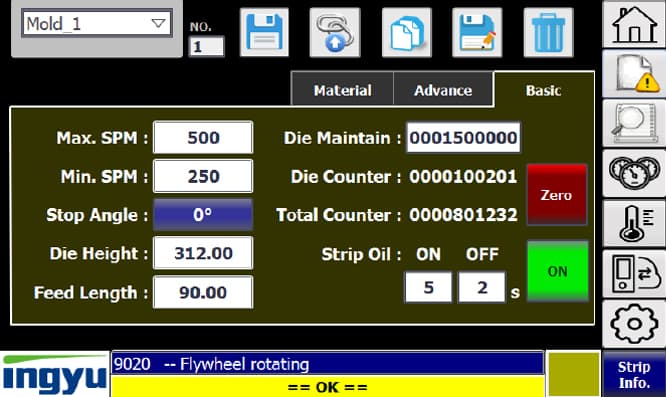

ONE System Control of Siemens Solution

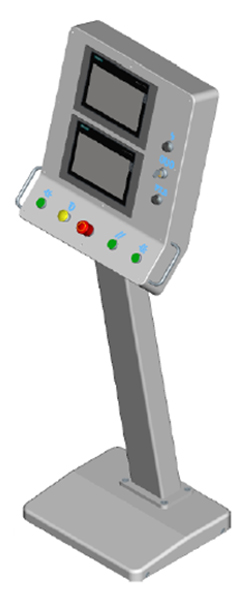

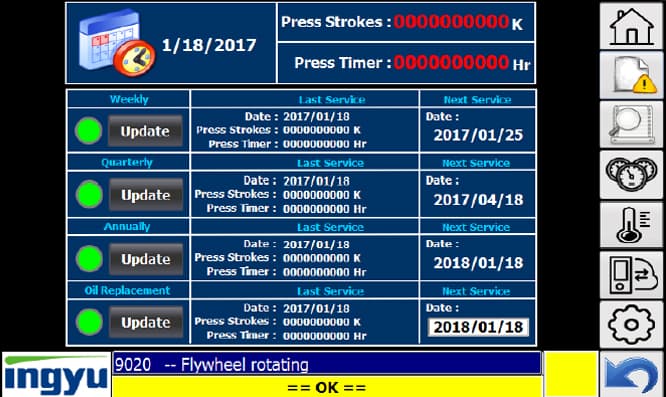

- Dual HMIs provide intuitive whole status of press and feeder / leveler.
- 100 tooling parameters storage, such as die height, speed, pitch and detector settings.

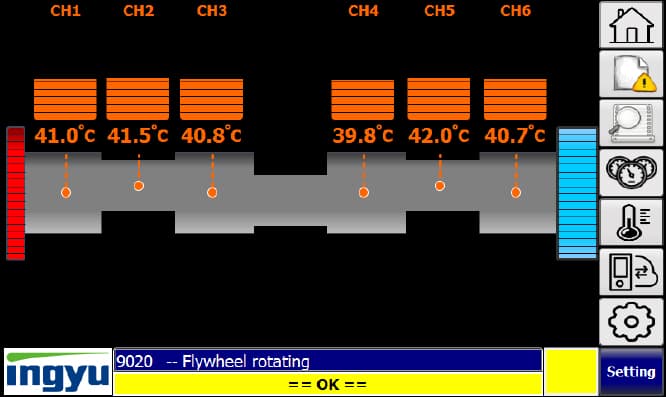

- Running temperature and hyd. pressure are monitored in real time.

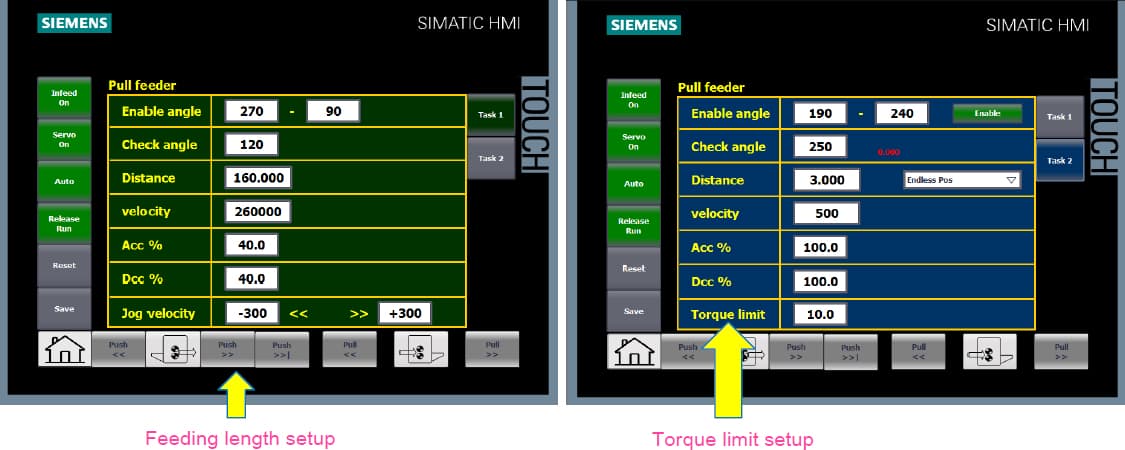

✓ Siemens HMI dual-screen display
✓ Push and pull feeders maintain stable strip feeding by synchronizing both ends with identical settings.
✓ High-resolution torque control maintains strip tension, preventing stretching or wrinkling during highspeed operation.
Recommendation of EV Tooling Manufacturer

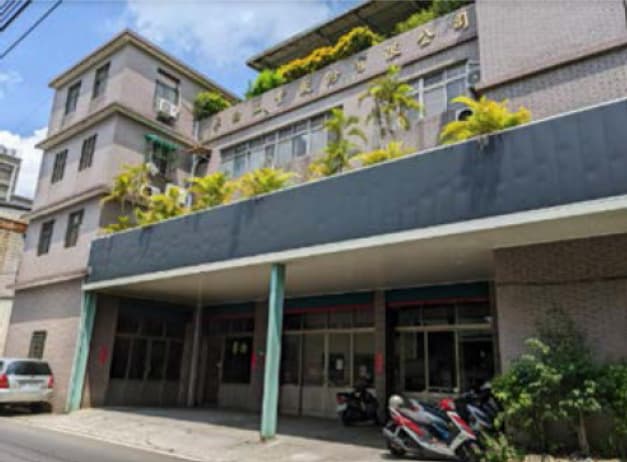

Lee Bai Co., Ltd.
- Since: 1984
- Turnover: US $2,000,000
- Location: New Taipei, Taiwan
- Tool Manufacturing Capacity: 10 Sets

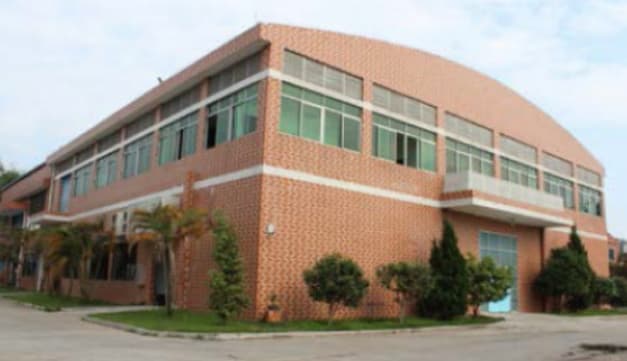

Guangzhou Qing Lian Precision Tech. Co., Ltd.
- Since: 2000
- Turnover: US $10,000,000
- Location: Guangzhou, China
- Tool Manufacturing Capacity: 80 Sets
| Thickness | Pitch | Dimension | Type | Tool Size (Rotor) |
Tool Size (Stator) |
Number of Ststions | No. of Stations (If Single Row) |
|
|---|---|---|---|---|---|---|---|---|
| 0.3 | 222 | Ø220*Ø161.4 | Double Rows Rotor & Stator Index |
1820x1040 | 1665x1040 | Rotor 7 Stator 6 |
Rotor 6 Stator 4 |
 |
| 0.27 | 232.5 | Ø230*Ø165 | Double Rows Rotor & Stator Index |
1630x930 | 1175x930 | Rotor 6 Stator 4 |
Rotor 6 Stator 4 |
 |
| 0.3 | 204.5 | Ø200*Ø129 | Double Rows Rotor & Stator Index |
1890x830 | Rotor 3 Stator 4 |
Rotor 3 Stator 4 |
 |
|
| 0.3 | 187.5 | Ø184*Ø120.8 | Double Rows Rotor & Stator Index |
1840x930 | 1555x930 | Rotor 8 Stator 6 |
Rotor 7 Stator 4 |
 |
Three Points Precision Press
Static accuracy exceeds JIS Special Grade standard requirement, ensuring minimal deflection and stable bottom-dead-center precision.

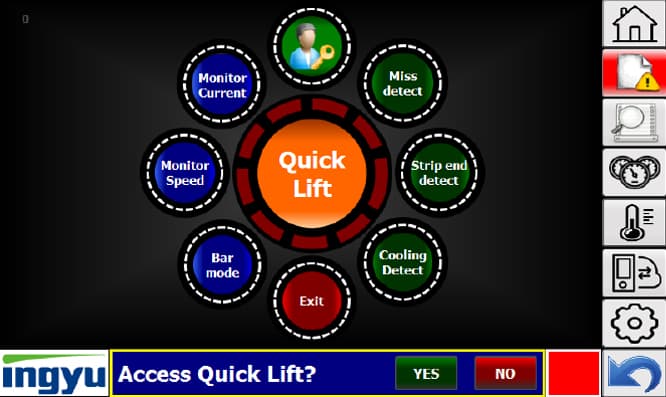

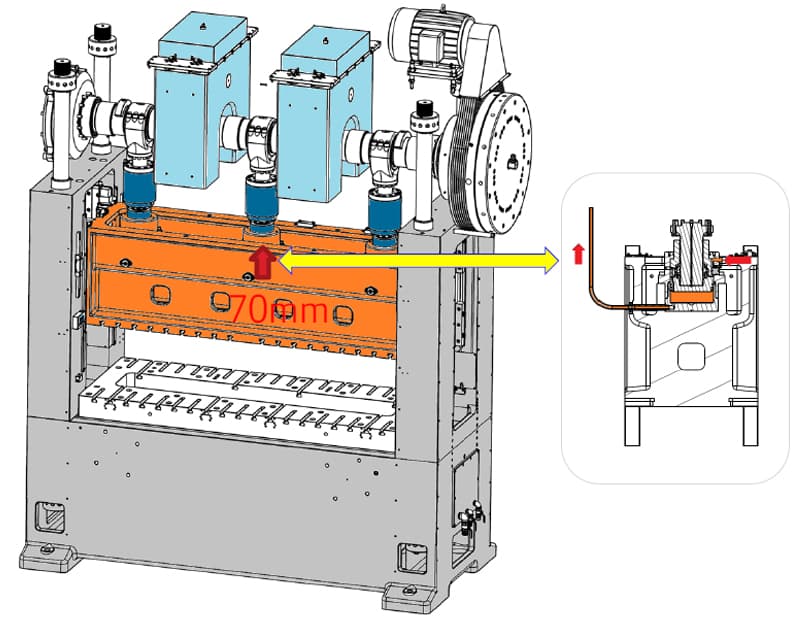

Slide Quick Lift System (Option)
The slide can move up 70 mm within 60 seconds to quickly resolve tooling issues, including die jamming.
After troubleshooting, the slide returns to the preset shut height while maintaining BDC accuracy.

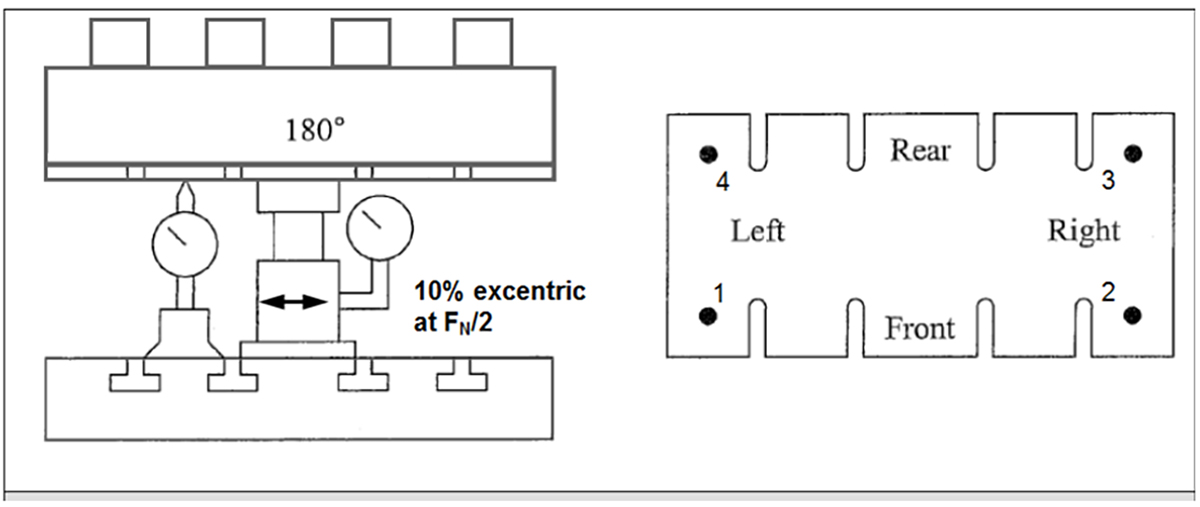

Slide Eccentric Titling Test
| Pos. 1 | Pos. 2 | Pos.3 | Pos.4 | |
|---|---|---|---|---|
| Left | 0.87 | 0.71 | 0.71 | 0.87 |
| Right | 0.71 | 0.87 | 0.87 | 0.71 |
| Front | 0.89 | 0.89 | 0.69 | 0.69 |
| Rear | 0.69 | 0.69 | 0.89 | 0.89 |

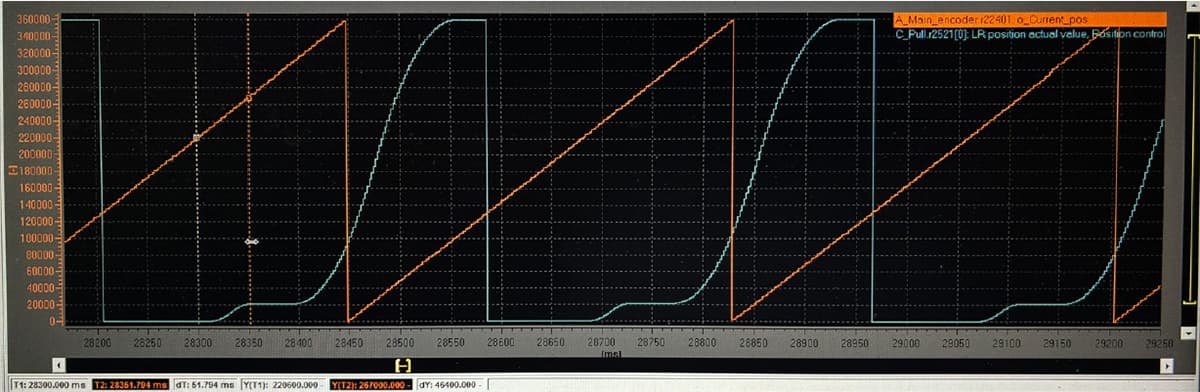

Pull Servo Feed – Tension Control
| Angle | Tooling Status | Feeder Status | Remark |
|---|---|---|---|
| 90º | Servo positioning | Acc / Dcc setup | |
| 120º | Pilot pin guide material | Push roller release | NOT release pull roller |
| 140º | Upper tooling clamp material | Strip and lifter go down | |
| 180º | Punch finish | Pre-tension start | Strip excess extending |
| 220º | Upper tooling leave material | Push roller clamp | Lifter push strip upward |
| 240º | Pilot pin leave | Pre-tension end | Strip swinging as strings |
| 270º | Constant tension | ||
| 290º | Feeding start angle | Strip waving outward |
* INGYU – Siemens servo feed with additive crank encoder
ONE System Control of Siemens Solution

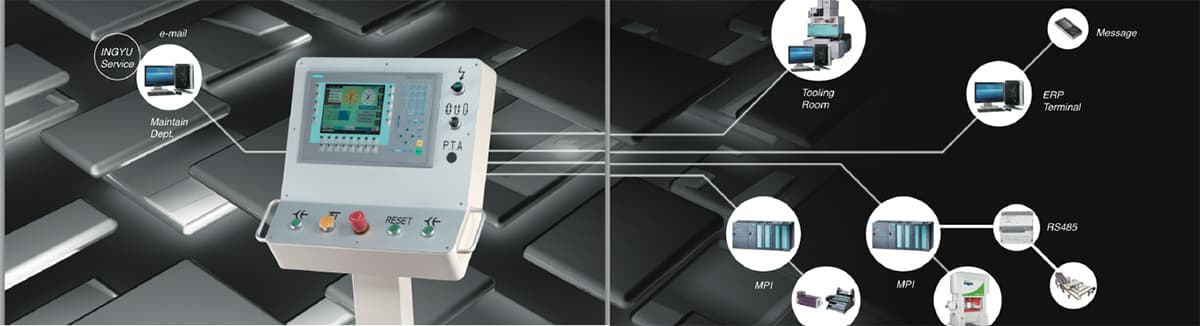

The press control interface supports MES integration, allowing real-time data exchange, production tracking, and centralized management across the manufacturing line.
